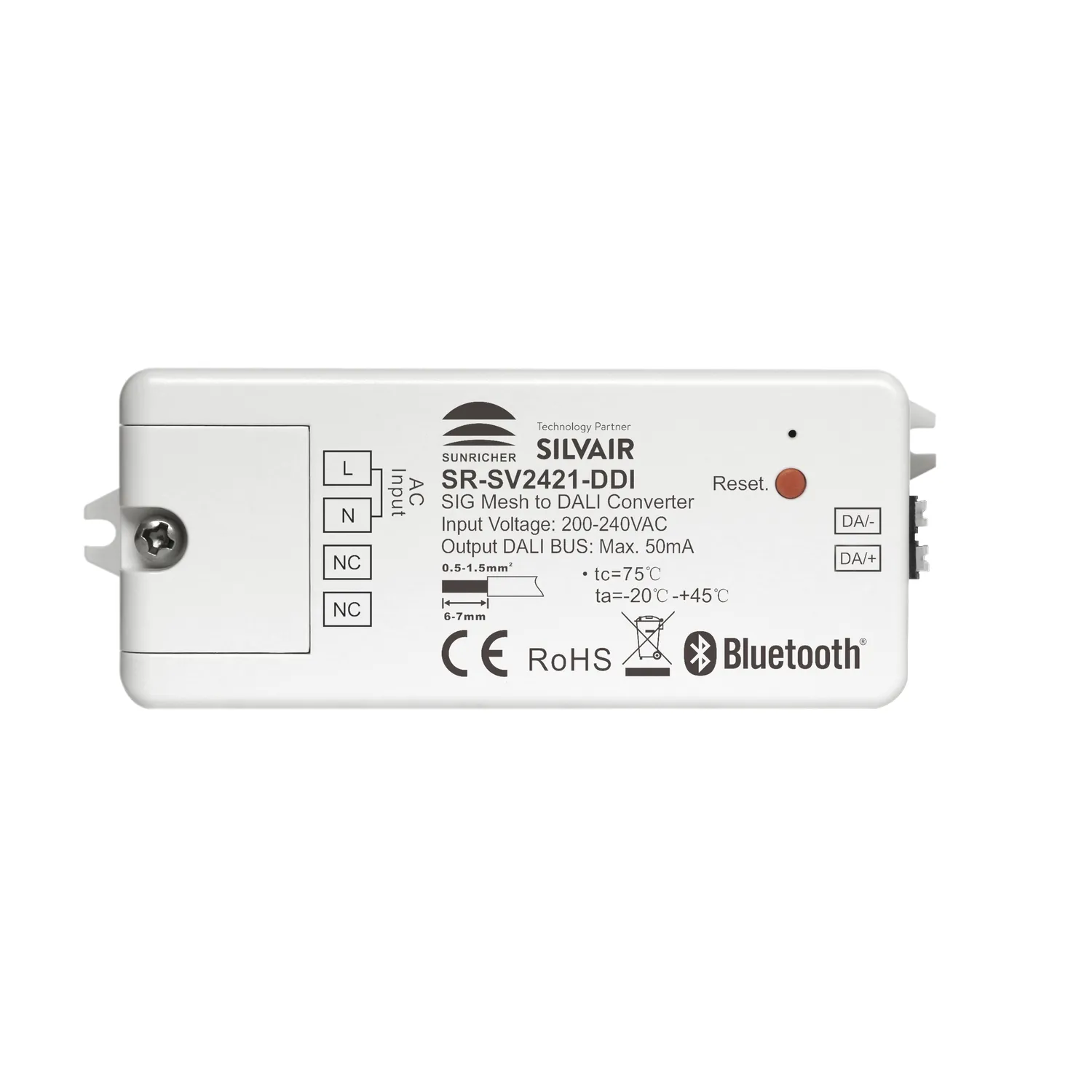

SR-SV2421-DDI
Silvair Mesh to DALI DT6 Converter | Built-in 80mA Bus Power | Up to 40 DALI Gears
- Wireless: Silvair Bluetooth mesh to DALI DT6 single-color conversion
- Self-Powered: Built-in 80mA DALI bus power supply
- Scalable: Controls up to 40 DALI control gears
- Dimmable single-color office and retail lighting
- Bluetooth mesh commissioning of DALI luminaires
- Retrofit conversion of DALI-2 lighting systems
Product information "SR-SV2421-DDI"
The Bluetooth to DALI Converter with Built-in Bus Power is a Bluetooth mesh device that integrates a DALI signal converter and an 80mA built-in DALI bus power supply, eliminating the need for an external power source and supporting control of up to 40 DALI control gears. It enables broadcast control of all devices on the DALI line via mobile application and Silvair Commissioning tools, supports our kinetic energy switches and EnOcean switches EWSSB and EWSDB, features an onboard antenna, and offers a typical outdoor wireless communication range of approximately 25 meters depending on installation.
| Commissioning Methods: | App (Bluetooth) |
|---|---|
| Configuration Interface: | Bluetooth App |
| Conformity Mark: | CE |

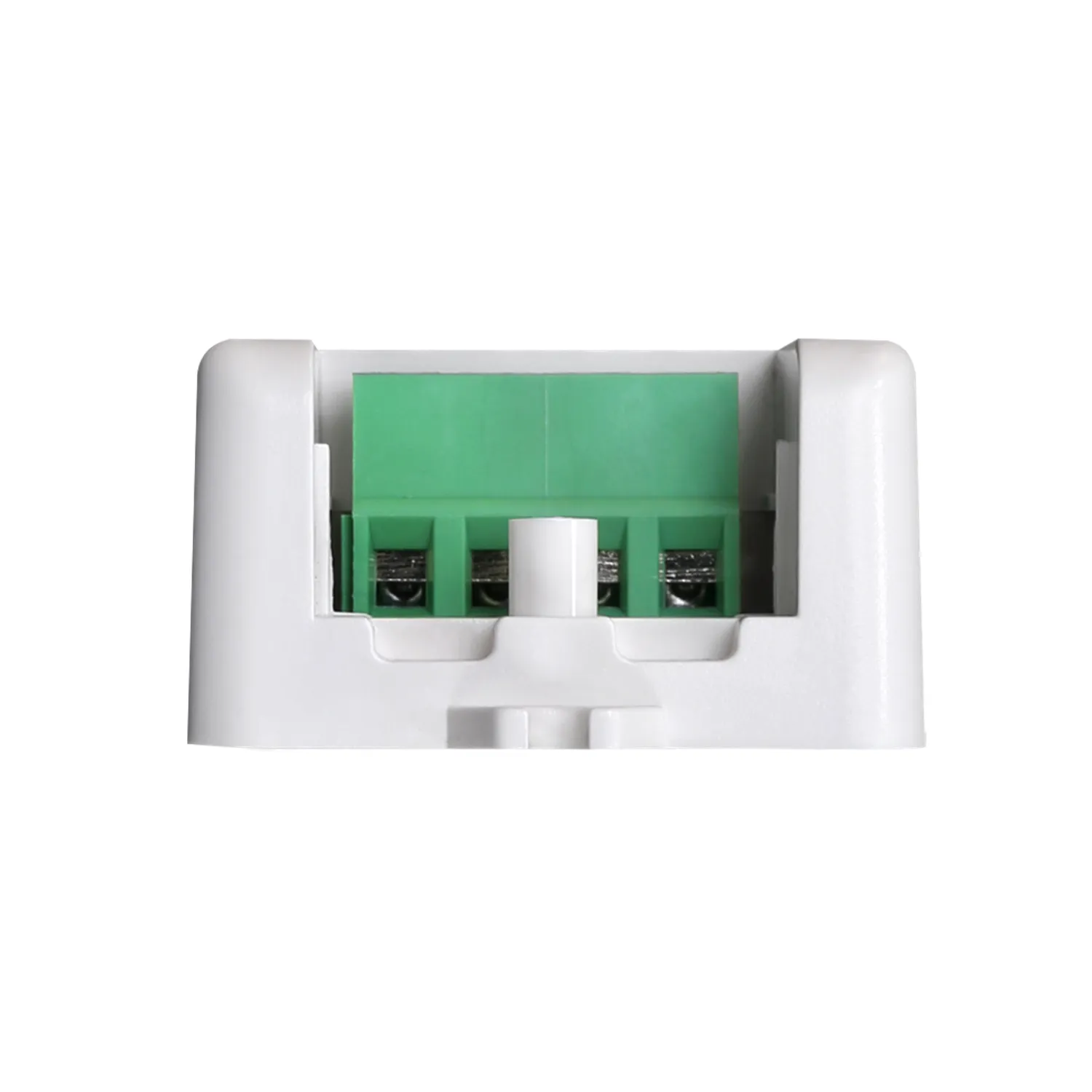

| Connector Type: | Wire |
| DALI Device Type: | DT6 |
| Dimming Method: | Digital: DALI |
| Electrical Safety Class: | Class II |

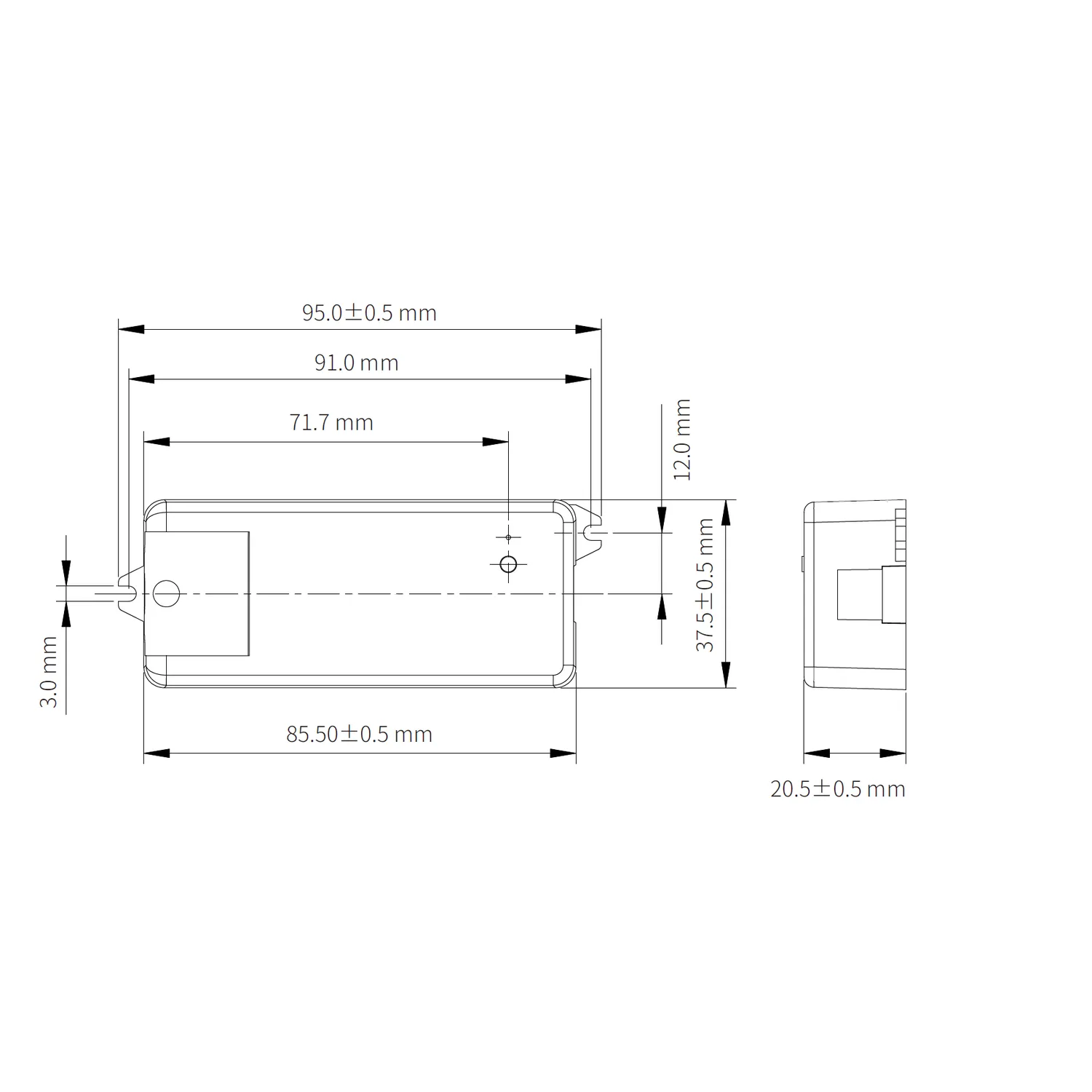

| Height: | 20 mm |
| Human Centric Lightning (HCL): | N/A |
| Length: | 95 mm |
| Mounting Place: | Ceiling |
| Operating Temperature Max: | 45 °C |
| Operating Temperature Min: | -20 °C |
| Operating Voltage Range: | 220-240VAC 50/60Hz |
| Packing Height (PU): | 280 mm |
| Packing Length (PU): | 380 mm |
| Packing Weight (PU): | 11000 g |
| Packing Width (PU): | 270 mm |
| Protection Class: | IP20 |
| Protocol: | Bluetooth, DALI |
| Push Button Input: | N/A |
| Qualified Bluetooth System: | Silvair |
| Required DALI Current Max: | 4 mA |
| Tax: | Standard Rate |
| Width: | 37 mm |
Documents 1
- Datasheet PDF Download
