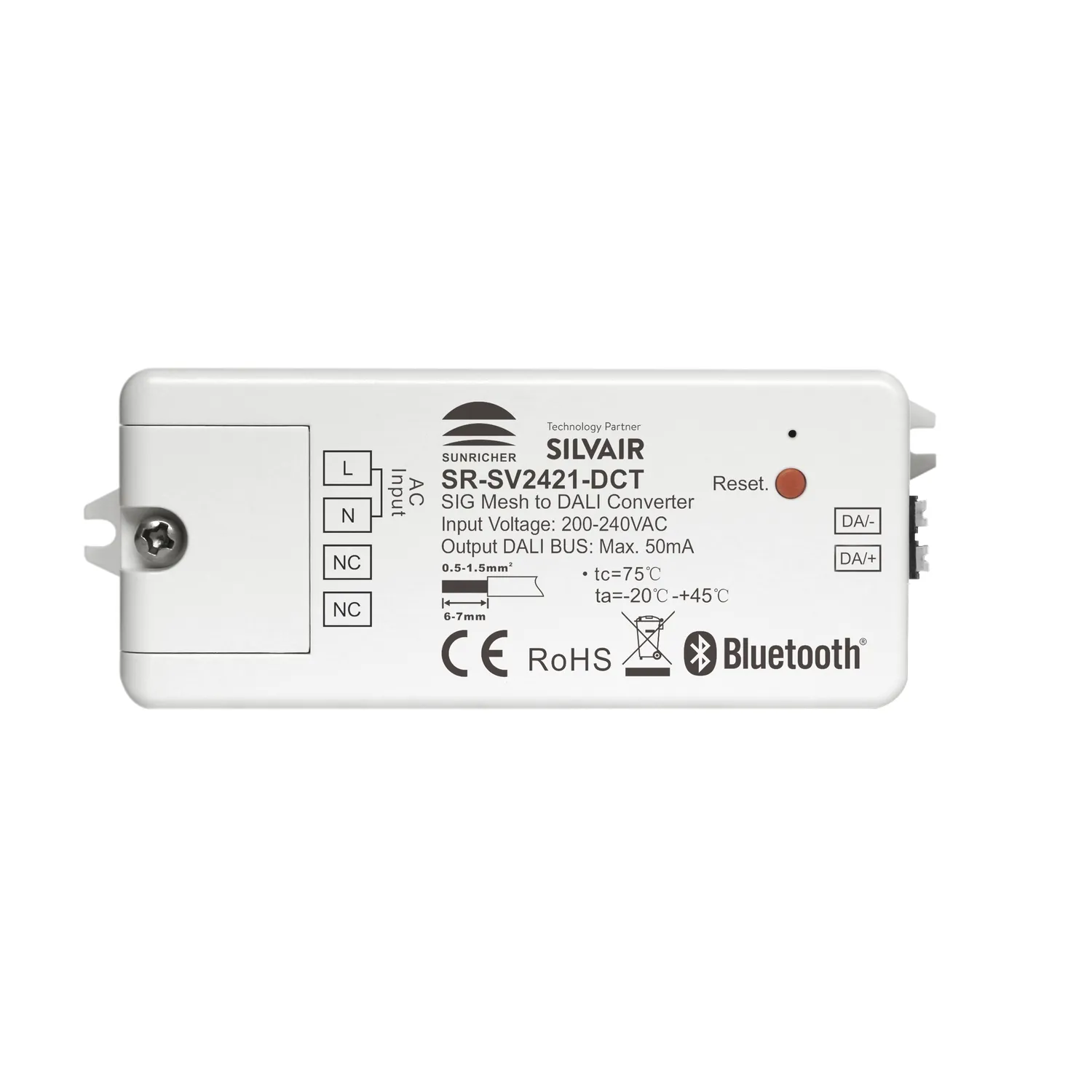

SR-SV2421-DCT
Silvair Mesh to DALI DT8 Converter | Built-in 80mA Bus Power | Up to 40 DALI Gears
- Wireless: Silvair Bluetooth mesh to DALI DT8 CCT conversion
- Self-Powered: Built-in 80mA DALI bus power supply
- Scalable: Controls up to 40 DALI control gears
- Tunable white office and retail lighting
- Bluetooth mesh commissioning of DALI CCT luminaires
- Retrofit conversion of DALI-2 CCT lighting systems
Product information "SR-SV2421-DCT"
The Bluetooth to DALI Converter with Built-in Bus Power is a Bluetooth mesh device that converts Bluetooth signals to DALI and includes a built-in DALI bus power supply with up to 80mA output, supporting control of up to 40 DALI control gears without the need for an external power supply.
It enables broadcast control of all devices on the DALI line via mobile application and Silvair Commissioning tools, transmits received signals to neighboring devices through a mesh network, supports kinetic energy switches and EnOcean switches EWSSB and EWSDB, features an onboard antenna, and provides a typical wireless range of about 25 meters in outdoor environments depending on installation conditions.
| Commissioning Methods: | App (Bluetooth) |
|---|---|
| Configuration Interface: | Bluetooth App |
| Conformity Mark: | CE |
| Connector Type: | Wire |
| DALI Device Type: | DT8 |
| Dimming Method: | Digital: DALI |
| Electrical Safety Class: | Class II |

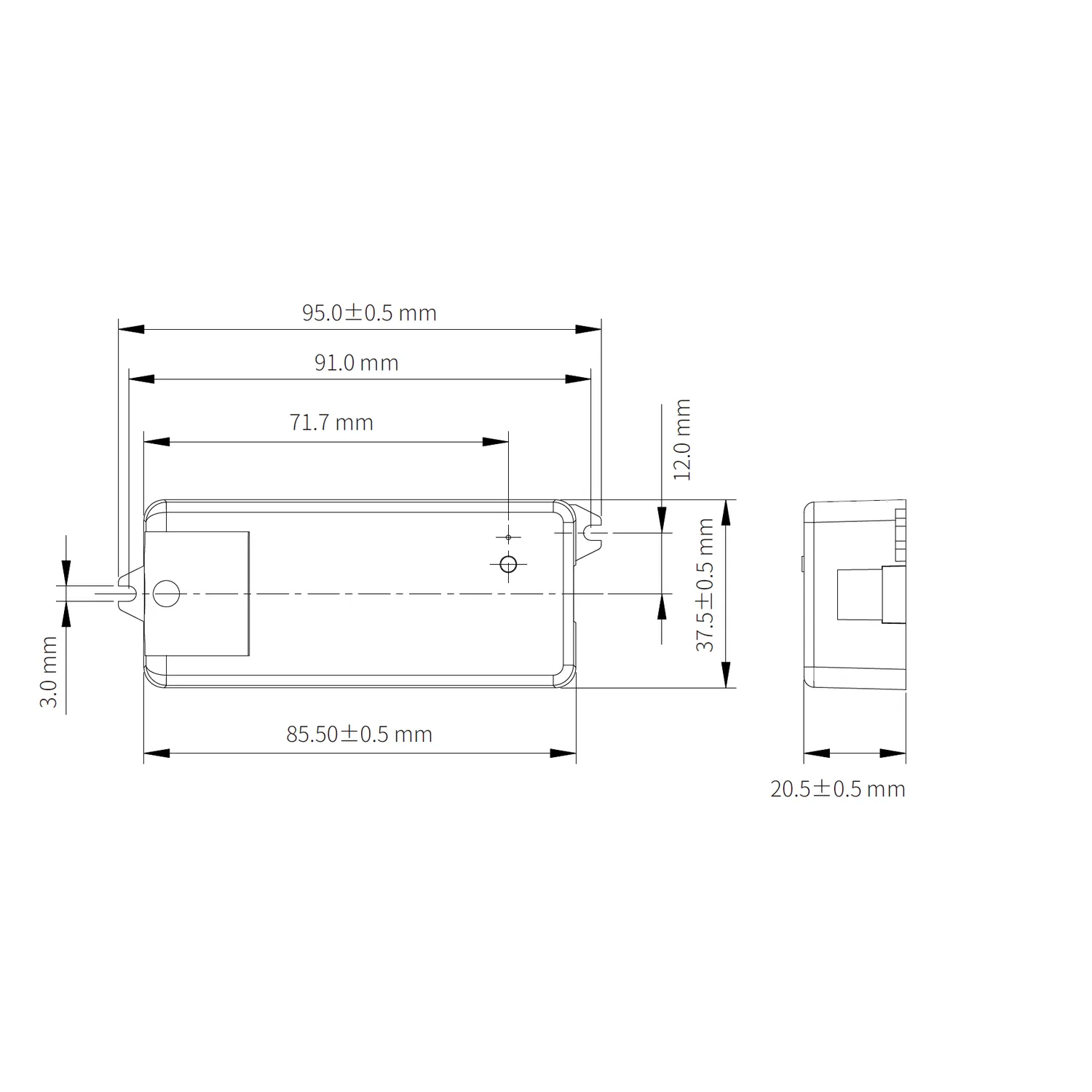

| Height: | 20 mm |
| Human Centric Lightning (HCL): | Available |
| Length: | 95 mm |
| Mounting Place: | Ceiling |
| Operating Temperature Max: | 45 °C |
| Operating Temperature Min: | -20 °C |
| Operating Voltage Range: | 220-240VAC 50/60Hz |
| Packing Height (PU): | 280 mm |
| Packing Length (PU): | 380 mm |
| Packing Weight (PU): | 11000 g |
| Packing Width (PU): | 270 mm |
| Protection Class: | IP20 |
| Protocol: | Bluetooth, DALI |
| Push Button Input: | N/A |
| Qualified Bluetooth System: | Silvair |
| Required DALI Current Max: | 4 mA |
| Tax: | Standard Rate |
| Width: | 37 mm |
Documents 1
- Datasheet PDF Download
