SRP-SV9105N-45CC500-1400
Bluetooth Mesh LED Driver 45W (CC) | Single Channel | NFC Programmable
- Powerful: 45W single-channel constant-current LED driver
- Smart: NFC programmable via smartphone app
- Connected: Bluetooth mesh network for long-range control
- Single-color LED luminaire dimming
- Bluetooth mesh commercial lighting control
- NFC-configured retail and office lighting
Product information "SRP-SV9105N-45CC500-1400"

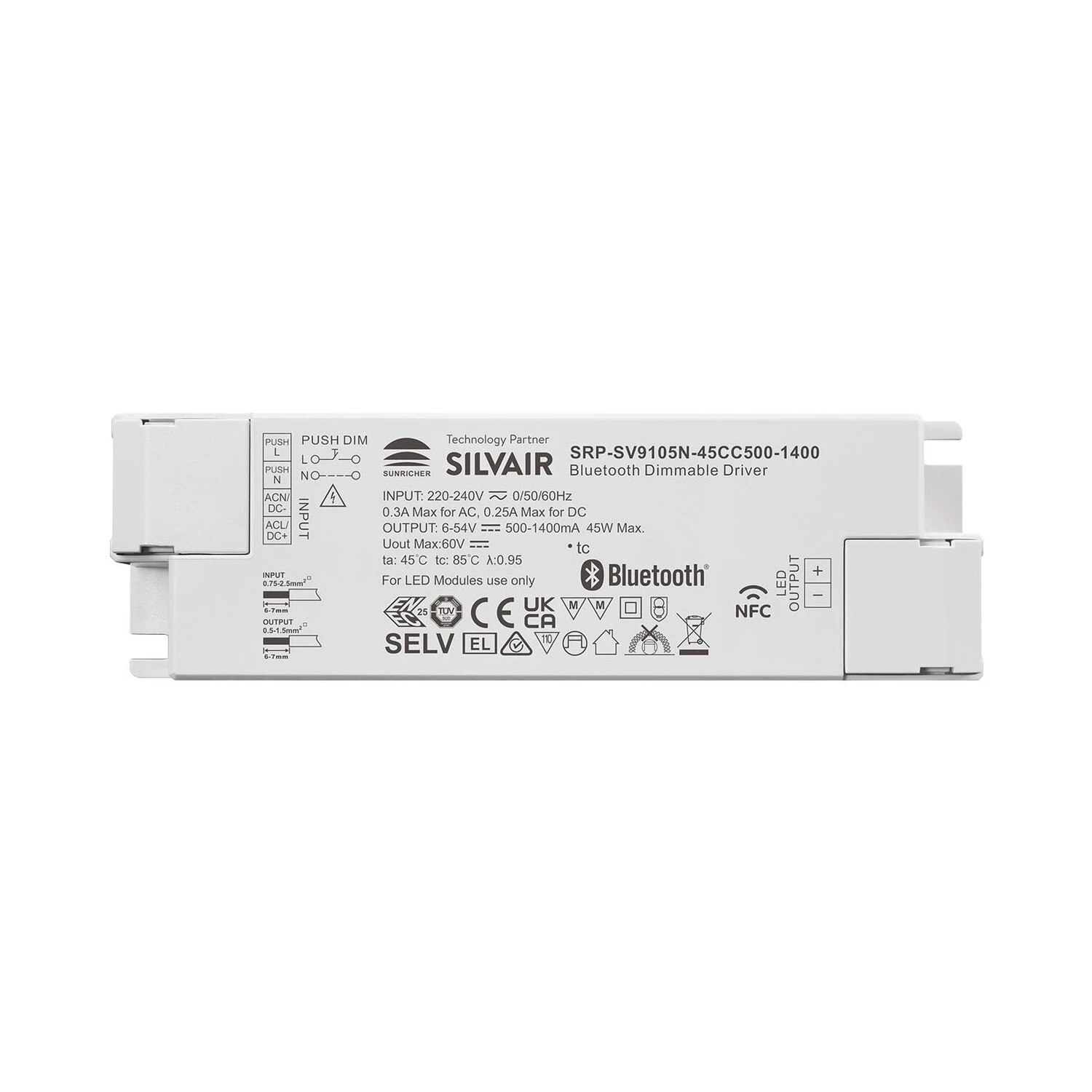

SRP-SV9105N-45CC500-1400 is a plastic casing 45W Bluetooth NFC programmable LED driver, enabled by Silvair technology. It is designed with 1 channel constant current output with adjustable current from 500mA to 1400mA, which enables it to be suitable for LED lights with different current. It is designed with 220-240VAC input. Power factor of the driver can be over 0.95 and efficiency is higher than 75%. It enables smooth and deep dimming to 0.01% without flickering and buzzing noise.
| AC Voltage Max: | 264 V |
|---|---|
| AC Voltage Min: | 196 V |
| Casing Temperature Tc Max: | 85 °C |
| Commissioning Methods: | App (Bluetooth) |
| Configuration Interface: | Bluetooth App |
| Conformity Mark: | CE |
| Connector Type: | Wire |
| Control Gear Type: | electronic control gear (ECG) |
| Current Output Max: | 1400 mA |
| Current Output Min: | 500 mA |
| DC Voltage Max: | 264 V |
| DC Voltage Min: | 196 V |
| Dimming Interface: | Bluetooth Mesh (BLE 5.2) |
| Dimming Max: | 100 % |
| Dimming Method: | Amplitude/CCR dimming |
| Dimming Min: | 0.01 % |
| Electrical Safety Class: | Class II |

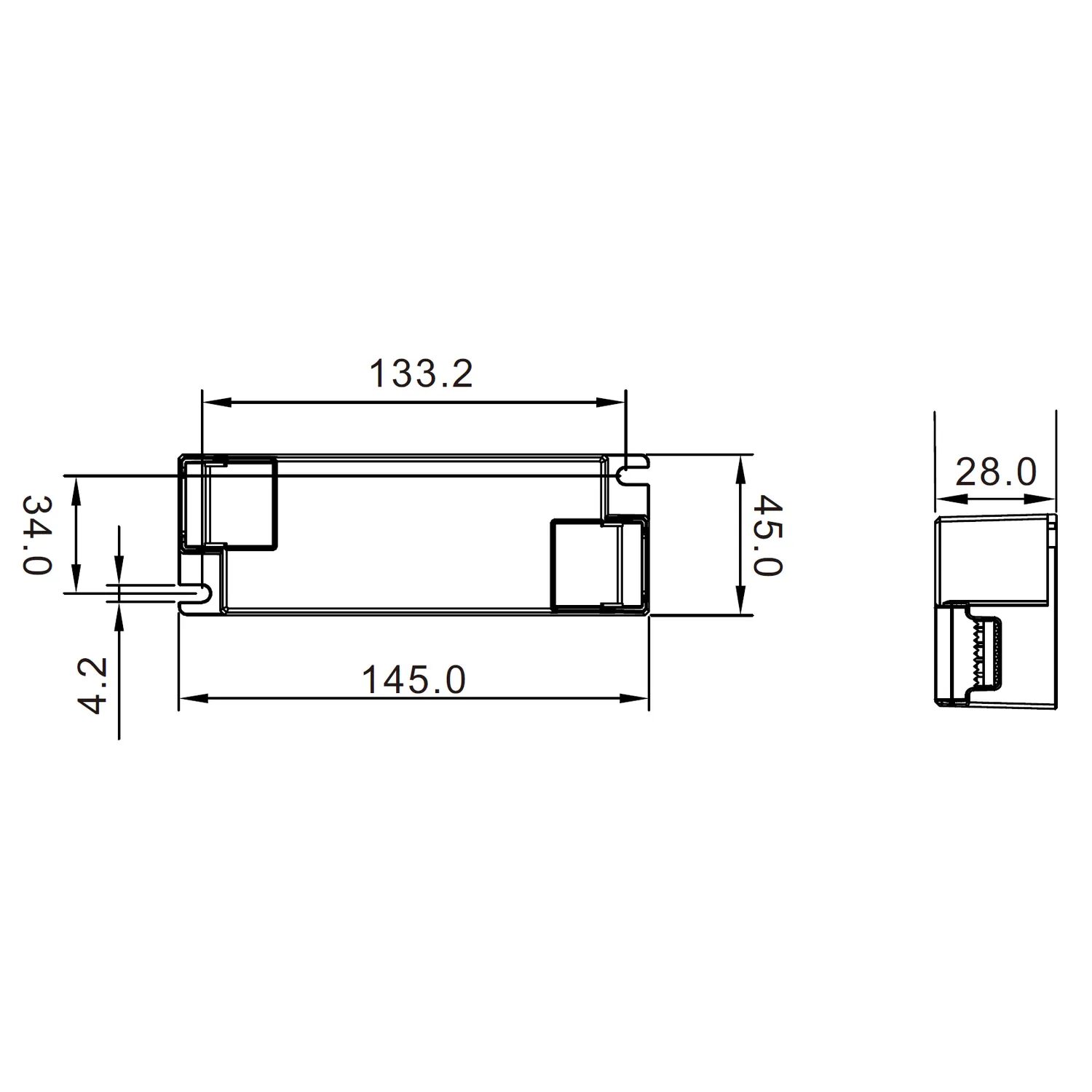

| Height: | 28 mm |
| Human Centric Lightning (HCL): | N/A |
| Input Voltage Type: | AC/DC |
| Length: | 145 mm |
| Mains Frequency: | 50/60Hz |
| Mains Voltage Max: | 240 V |
| Mains Voltage Min: | 220 V |
| Mounting Place: | Ceiling |
| Operating Temperature Max: | 45 °C |
| Operating Temperature Min: | -25 °C |
| Operating Voltage Range: | 176-264VAC/176-280VDC |
| Packing Height (PU): | 280 mm |
| Packing Length (PU): | 380 mm |
| Packing Weight (PU): | 16000 g |
| Packing Width (PU): | 270 mm |
| Power Output Max: | 45 W |
| Protection Class: | IP20 |
| Protocol: | Bluetooth |
| Push Button Input: | Available |
| Qualified Bluetooth System: | Silvair |
| Setting Method: | NFC |
| Storage Temperature Max.: | 80 °C |
| Storage Temperature Min.: | -40 °C |
| Tax: | Standard Rate |
| Voltage Output Max: | 54 V |
| Voltage Output Min: | 6 V |
| Width: | 45 mm |
| Wireless Connection Protocoll: | Bluetooth Mesh (BLE 5.2) |
Documents 1
- Datasheet PDF Download
