tempLED RayBeam Pro V2 300 - 90 4000K
- Power: 300W
- Efficacy: 200 lm/W
- Luminous Flux: 60000lm
- Beam Angle: 90°
- Assembly
- Heavy industry
- Industrial plants
- Logistics
- Cold storage
Product information "tempLED RayBeam Pro V2 300 - 90 4000K"
Our new tempLED RayBeam Pro V2 LED high-bay luminaire is the ideal lighting partner for industrial and logistics areas as well as production halls of all kinds with a high efficiency of up to 200 lumens per watt. The turbine-like housing dissipates waste heat particularly well and the dust-permeable heat sink prevents soiling. With the Zhaga-18 socket for optional control technology, you can make your luminaire smart in no time at all. The completely modular LED high-bay luminaire is rounded off by optional DALI-2 dimming and three practical beam angles, two of which are equipped with high-performance light control optics with linear technology to reduce scattered light. A five-year full guarantee and ten-year spare parts guarantee provide you with a secure, long-term investment.
| Beam Angle (Half Value): | 90 ° |
|---|---|
| Conformity Mark: | CE |
| Correlated Color Temperature (CCT): | 4000 °K |

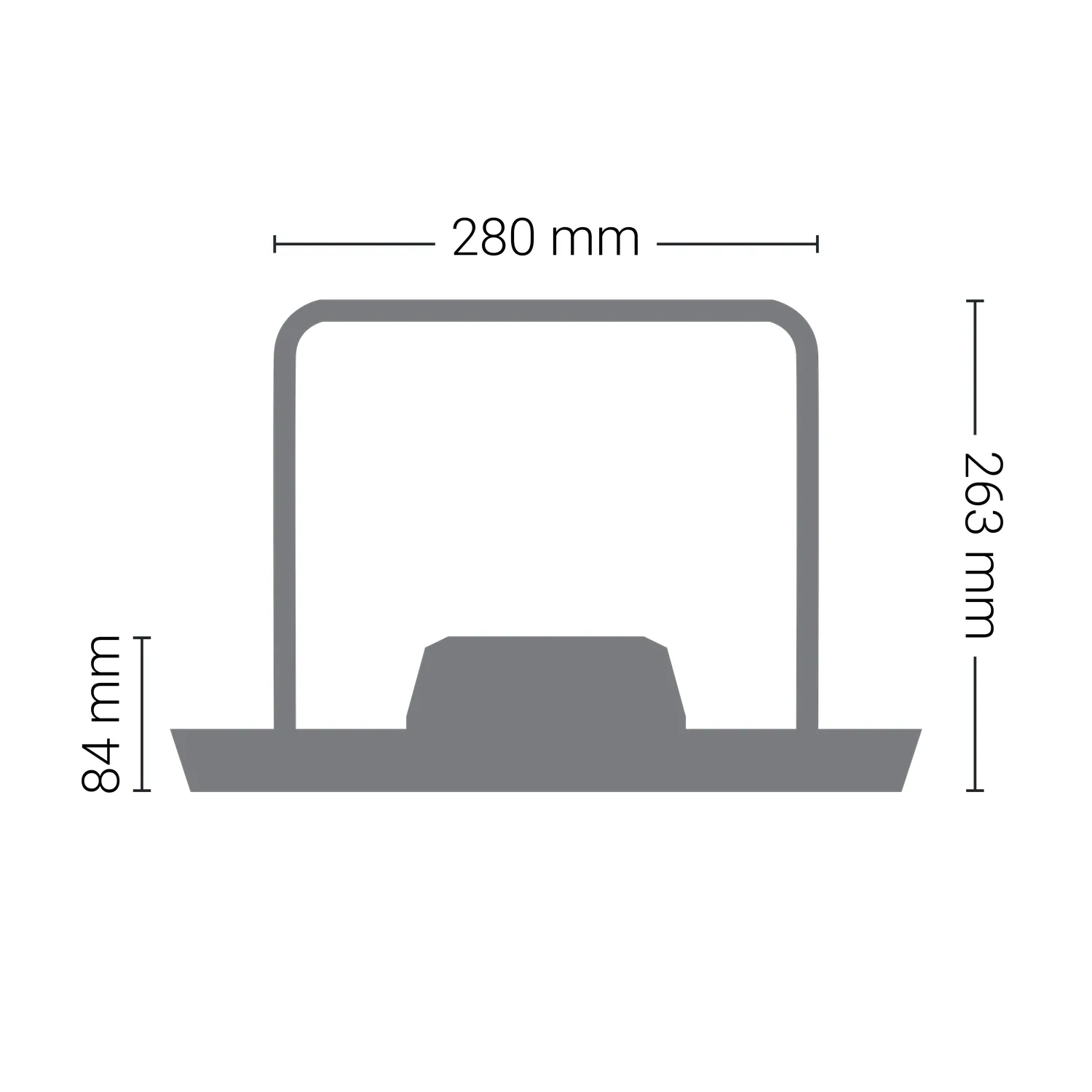

| Diameter: | 401 mm |
| Electrical Safety Class: | Class I |
| Height: | 263 mm |
| Mains Frequency: | 50/60Hz |
| Operating Temperature Max: | 50 °C |
| Operating Temperature Min: | -40 °C |
| Packing Height (PU): | 200 mm |
| Packing Length (PU): | 475 mm |
| Packing Weight (PU): | 7050 g |
| Packing Width (PU): | 475 mm |
| Protection Class: | IP65 |
| Tax: | Standard Rate |
| Weight: | 5350 g |
Documents 1
- Datasheet PDF Download
