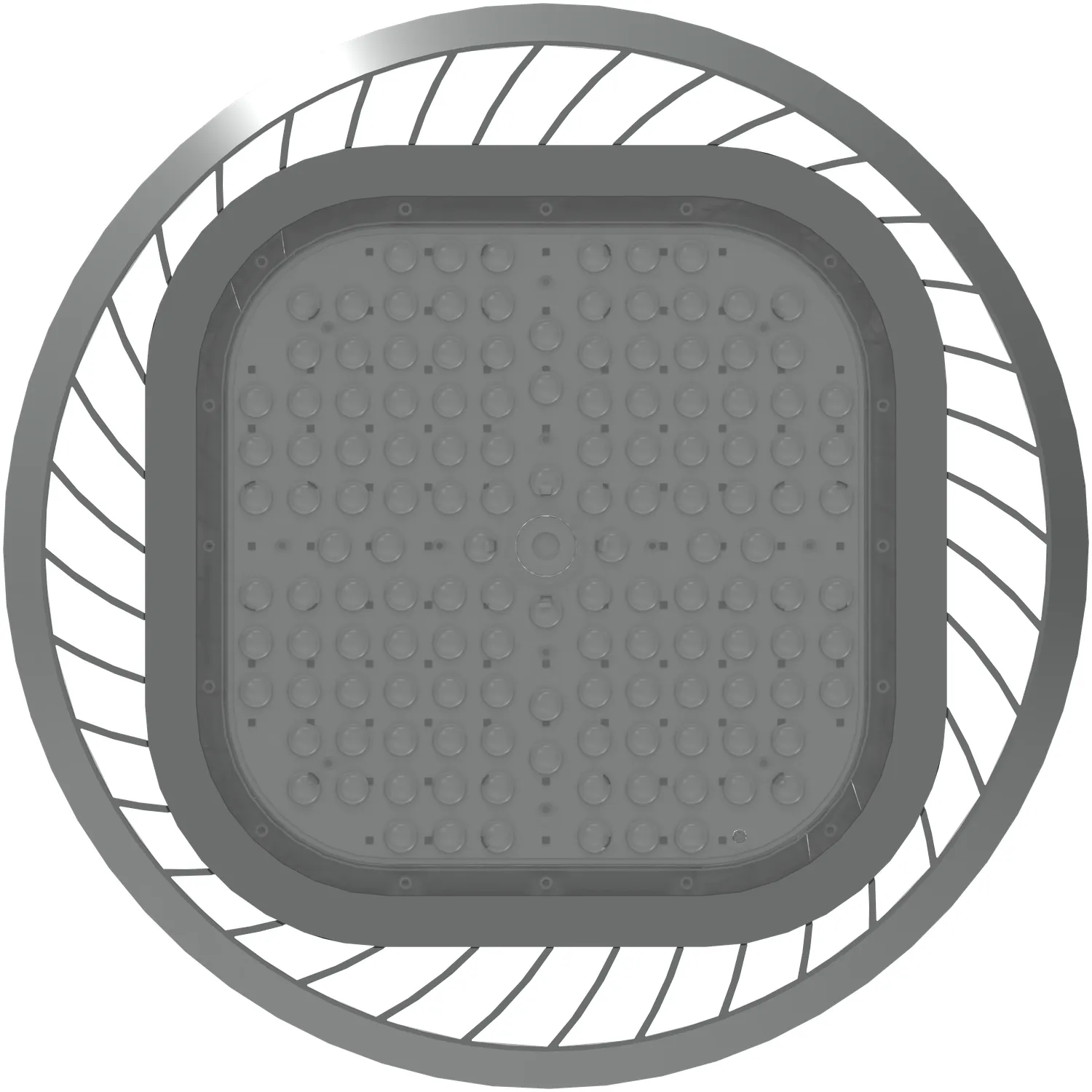

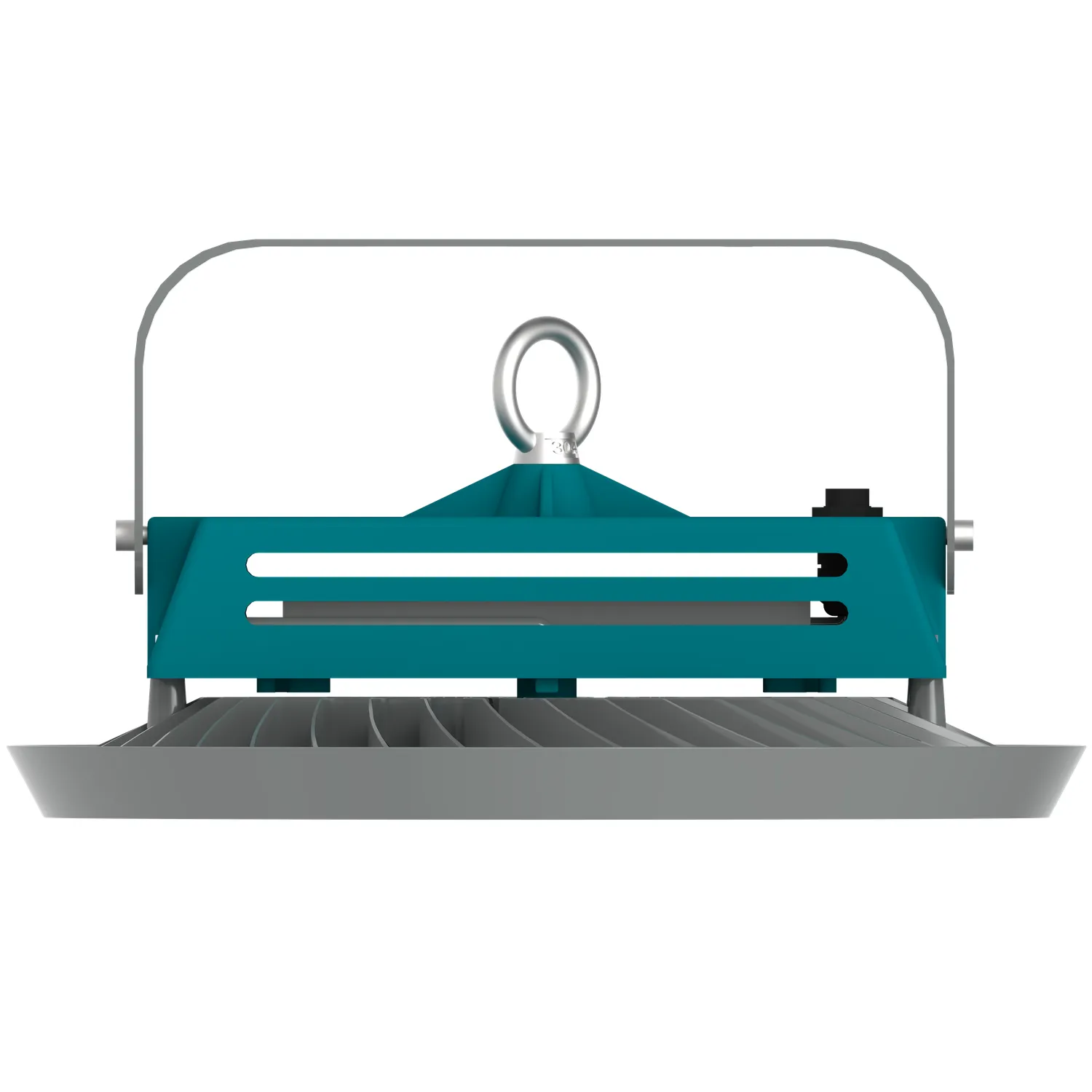

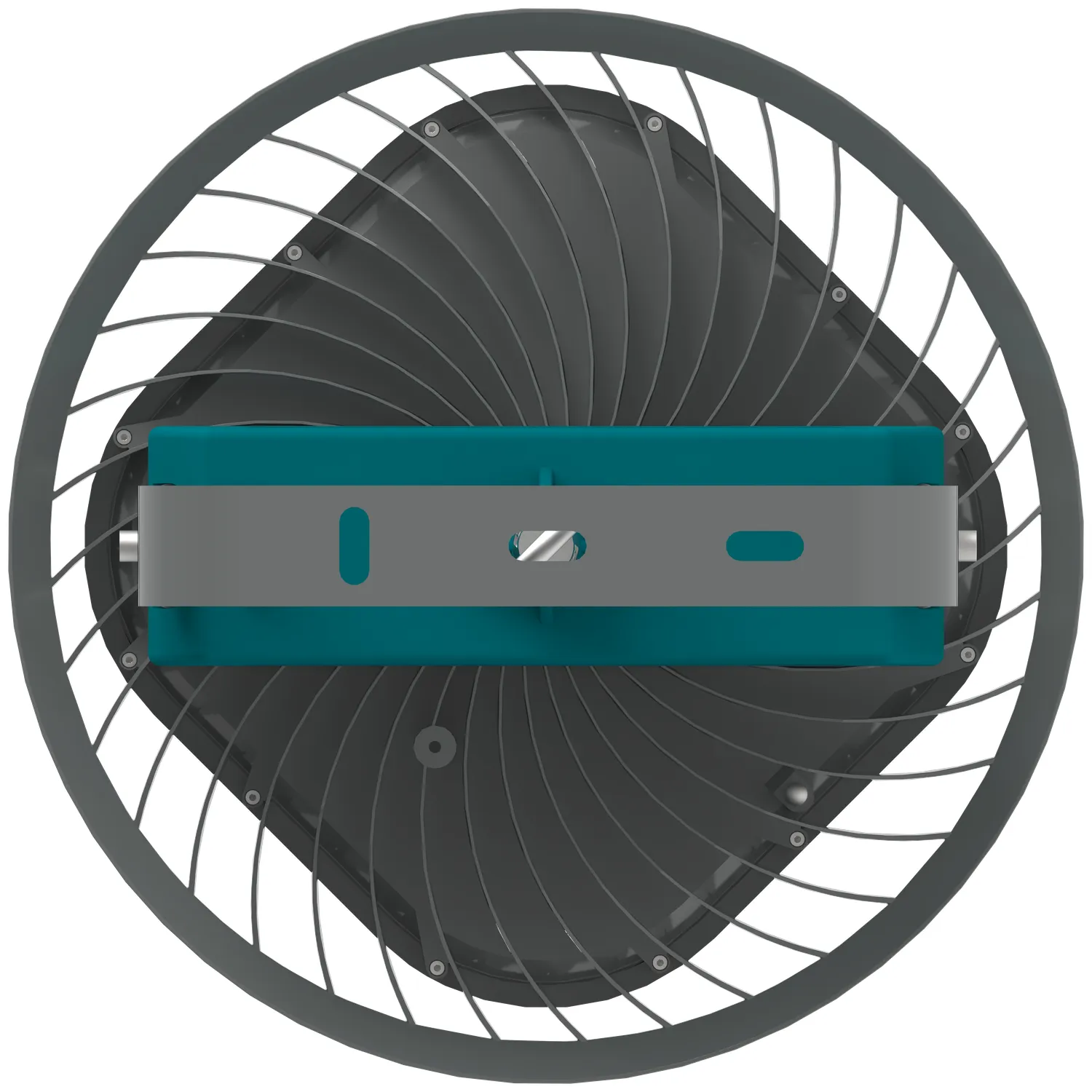

tempLED RayBeam Pro HT V2 100 - 60 4000K
- Power: 100W
- Efficacy: 170 lm/W
- Luminous Flux: 17000lm
- Beam Angle: 60°
- Notes: Tempered glass
- Assembly
- Heavy industry
- Industrial plants
- Logistics
Product information "tempLED RayBeam Pro HT V2 100 - 60 4000K"
Our tempLED RayBeam Pro V2 HT high-temperature LED high-bay luminaire is the ideal lighting partner for industrial areas with high ambient temperatures of up to +80 degrees Celsius thanks to four power levels from 100 to 240 watts. The integrated high-performance light-directing optics with three practical symmetrical beam angles of 60 to 120 degrees effectively reduce spill light and direct the light exactly where it is needed. The completely modular LED high-bay luminaire for high temperatures is rounded off by a replaceable power supply unit, DALI-2 dimming as standard and a sturdy cover made of five millimetre thick safety glass. A five-year full guarantee and ten-year spare parts guarantee provide you with a secure, long-term investment.
| Beam Angle (Half Value): | 60 ° |
|---|---|
| Conformity Mark: | CE |
| Correlated Color Temperature (CCT): | 4000 °K |

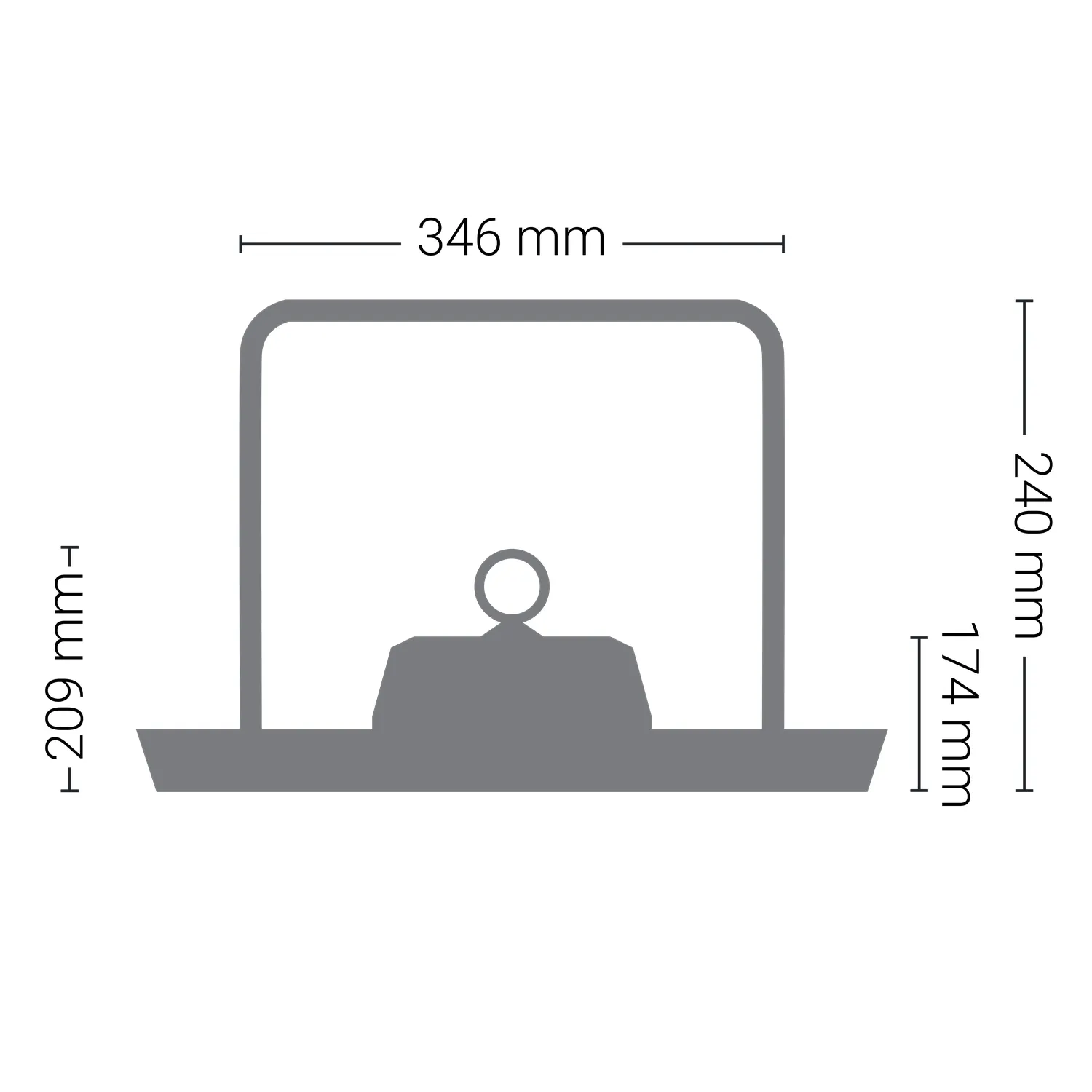

| Diameter: | 450 mm |
| Electrical Safety Class: | Class I |
| Height: | 240 mm |
| Mains Frequency: | 50/60Hz |
| Operating Temperature Max: | 80 °C |
| Operating Temperature Min: | -40 °C |
| Packing Height (PU): | 270 mm |
| Packing Length (PU): | 510 mm |
| Packing Weight (PU): | 11500 g |
| Packing Width (PU): | 510 mm |
| Protection Class: | IP66 |
| Tax: | Standard Rate |
| Weight: | 9500 g |
Documents 1
- Datasheet PDF Download
