tempLED RayLance V3 145 - 120 4000K
Up to 185 lm/W, UGR <16 | Ball-Impact Certified, IP66 | Smooth Housing for Easy Cleaning
- Power: 145W
- Efficacy: 185 lm/W
- Luminous Flux: 26825lm
- Beam Angle: 120°
- Sports facilities
- Warehouses
- Industrial plants
- Logistics
- Cold storage
Product information "tempLED RayLance V3 145 - 120 4000K"
Our new tempLED RayLance V3 LED luminaire series is the ideal lighting partner for industrial and logistics areas as well as production halls of all kinds, with a high efficiency of up to 185 lumens per watt. With certification for ball impact safety and a UGR value of up to <16, it is also ideal for use in sports halls and gymnasiums. The completely modular LED high-bay luminaire is rounded off by optional DALI-2 dimming and a smooth housing surface for easy cleaning. A five-year full guarantee and ten-year spare parts guarantee provide you with a secure, long-term investment.
| Beam Angle (Half Value): | 120 ° |
|---|---|
| Conformity Mark: | CE |
| Correlated Color Temperature (CCT): | 4000 °K |
| Electrical Safety Class: | Class I |

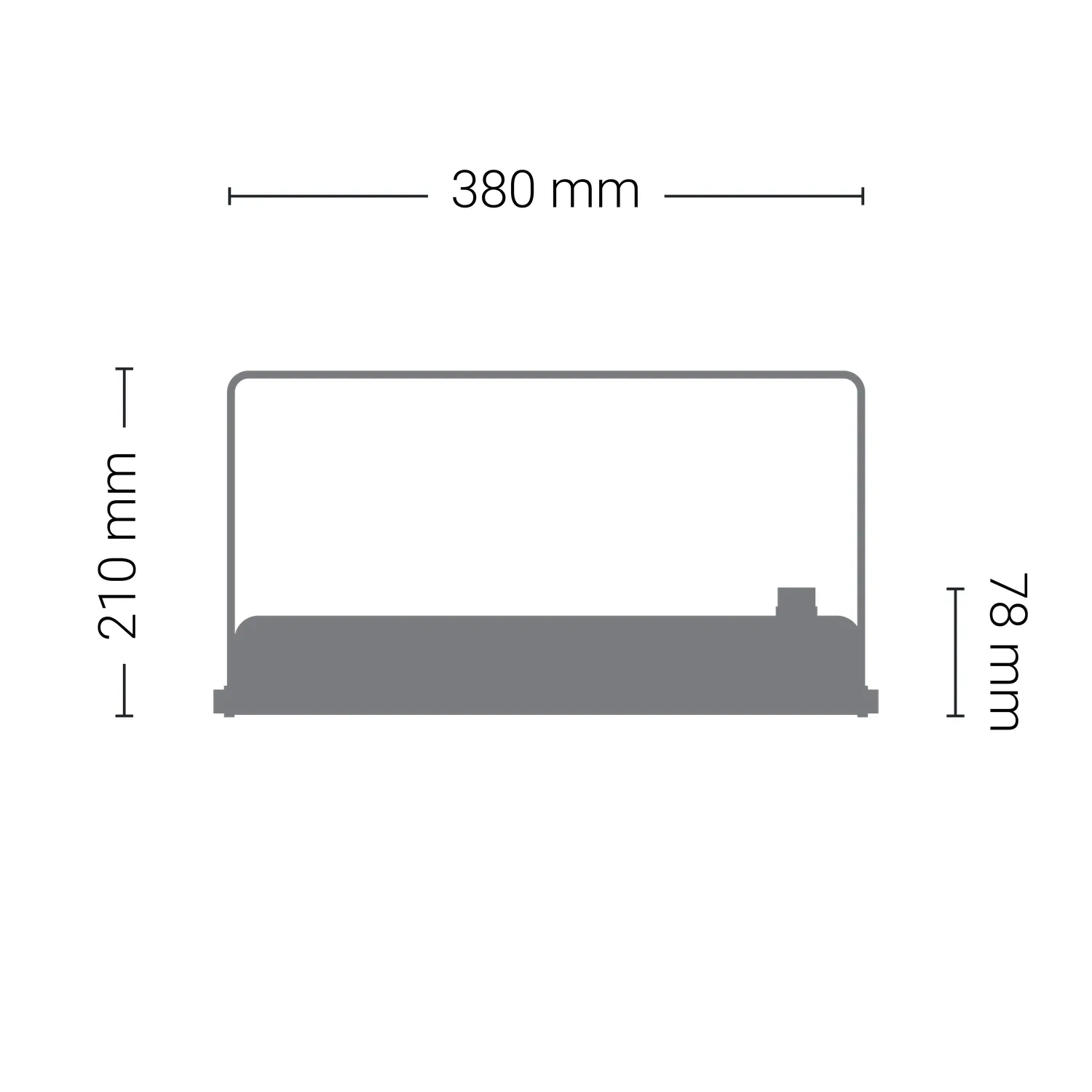

| Height: | 210 mm |
| Length: | 380 mm |
| Mains Frequency: | 50/60Hz |
| Operating Temperature Max: | 50 °C |
| Operating Temperature Min: | -30 °C |
| Packing Height (PU): | 150 mm |
| Packing Length (PU): | 450 mm |
| Packing Weight (PU): | 4500 g |
| Packing Width (PU): | 440 mm |
| Protection Class: | IP66 |
| Tax: | Standard Rate |
| Weight: | 3700 g |
| Width: | 340 mm |
Documents 1
- Datasheet PDF Download
