SR-SV9033A-PIR-D-BUS (15meter version)
IP65 Bluetooth DALI PIR Sensor | Zhaga Book 18 Interface | Fixture-Integrated Mounting
- Rugged: IP65-rated for outdoor and washdown environments
- Modular: Zhaga Book 18 interface for tool-free mounting
- Integrated: Fixture-mounted DALI PIR sensing
- Outdoor and washdown area occupancy sensing
- Zhaga Book 18 luminaire integration
- Bluetooth DALI-2 fixture-mounted lighting control
Product information "SR-SV9033A-PIR-D-BUS (15meter version)"

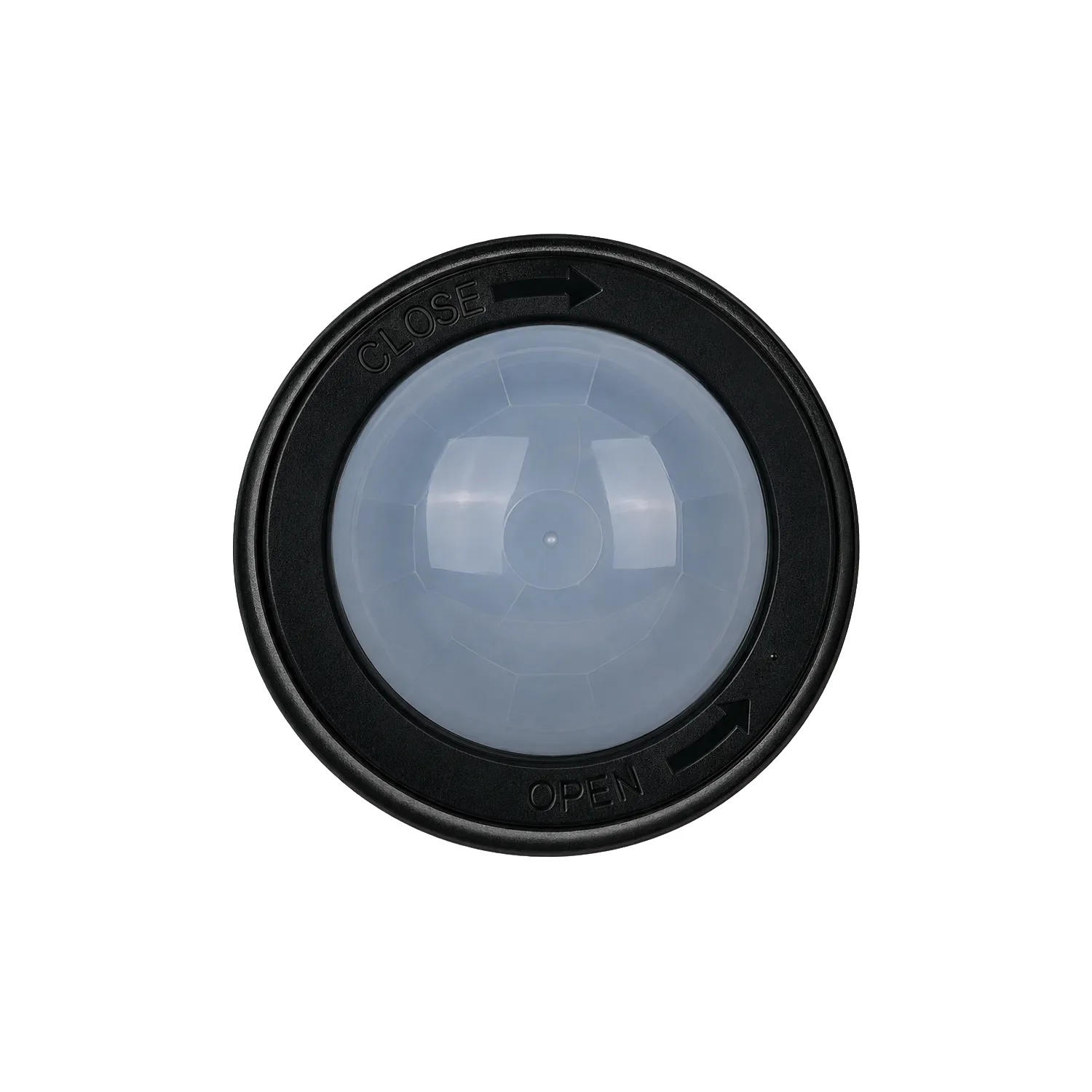

The Bluetooth to DALI sensor controller is Bluetooth® NLC Certified and operates on a Mesh network that extends control range by transmitting signals between neighboring devices. It enables broadcast control of all devices on the DALI line via a mobile application and supports our kinetic energy switches as well as EnOcean switches EWSSB and EWSDB. With autonomous sensor-based control, adjustable sensitivity, and a ZHAGA Book 18 socket, it also features a magnetic reset function by touching “OPEN” on the sensor top for 5 seconds, an on-board antenna, and comes with a 5-year warranty.
| Bluetooth Platform: | Nordic nRF52840 |
|---|---|
| Bluetooth Range Max: | 70 m |
| Bluetooth Transmit Power Max: | 8 dBm |
| Casing Temperature Tc Max: | 55 °C |
| Commissioning Methods: | App (Bluetooth) |
| Configuration Interface: | Bluetooth App |
| Conformity Mark: | CE, UKCA |
| Connector Type: | Wire |
| Current Consumption: | 30 mA |
| DALI Device Type: | DT6 |
| Detection Angle Max: | 360 ° |
| Detection Angle Min: | 360 ° |
| Detection Area: | 18 x 18 m |
| Detection Methods: | PIR |
| Detector Characteristics: | Round |

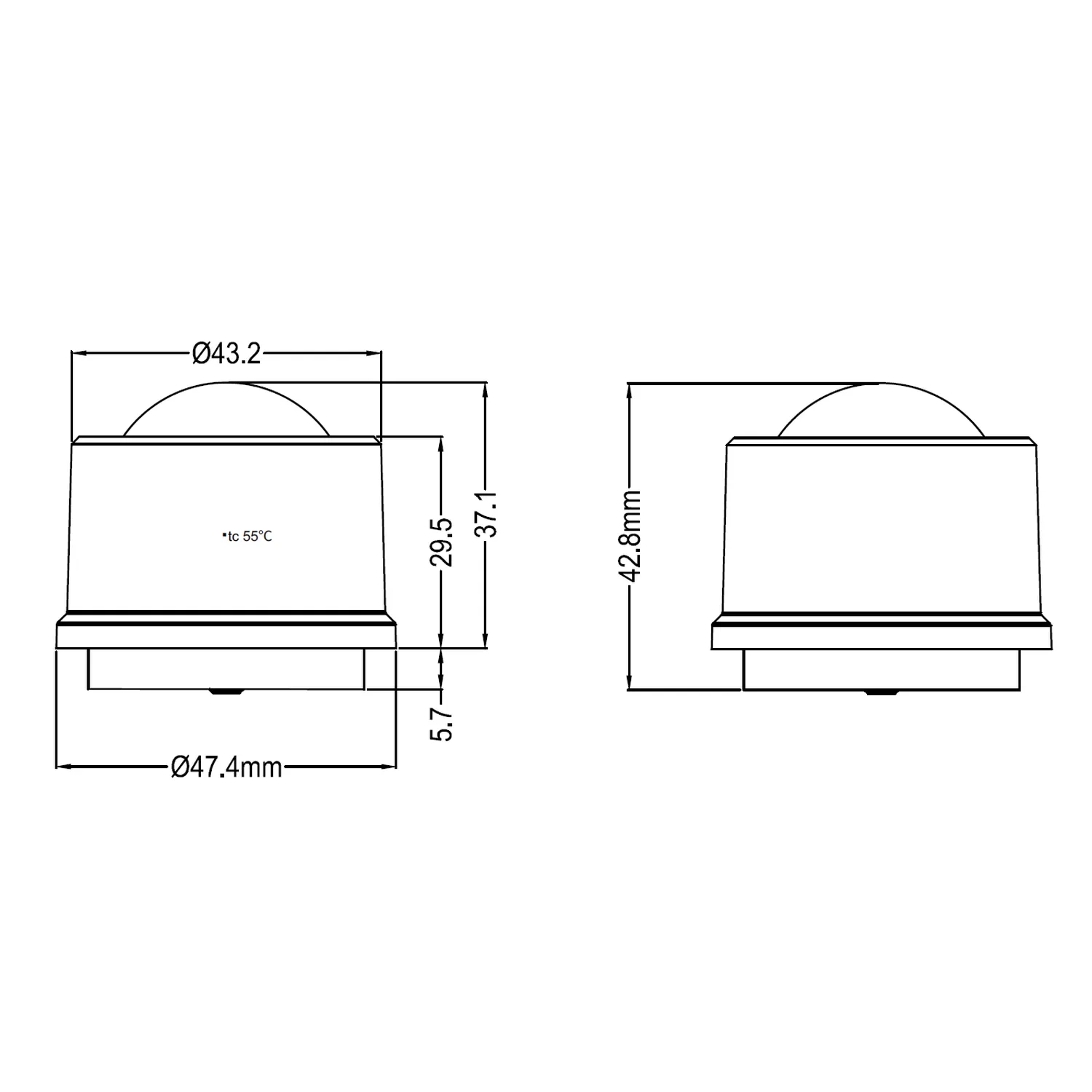

| Diameter: | 47.4 mm |
| Dimming Method: | Digital: DALI-2/ D4i |
| Electrical Safety Class: | Class III |
| Height: | 42.7 mm |
| Human Centric Lightning (HCL): | N/A |
| Mounting Height: | High Bay |
| Mounting Height Max: | 17 m |
| Mounting Place: | Zhaga Book 18 Luminaire |

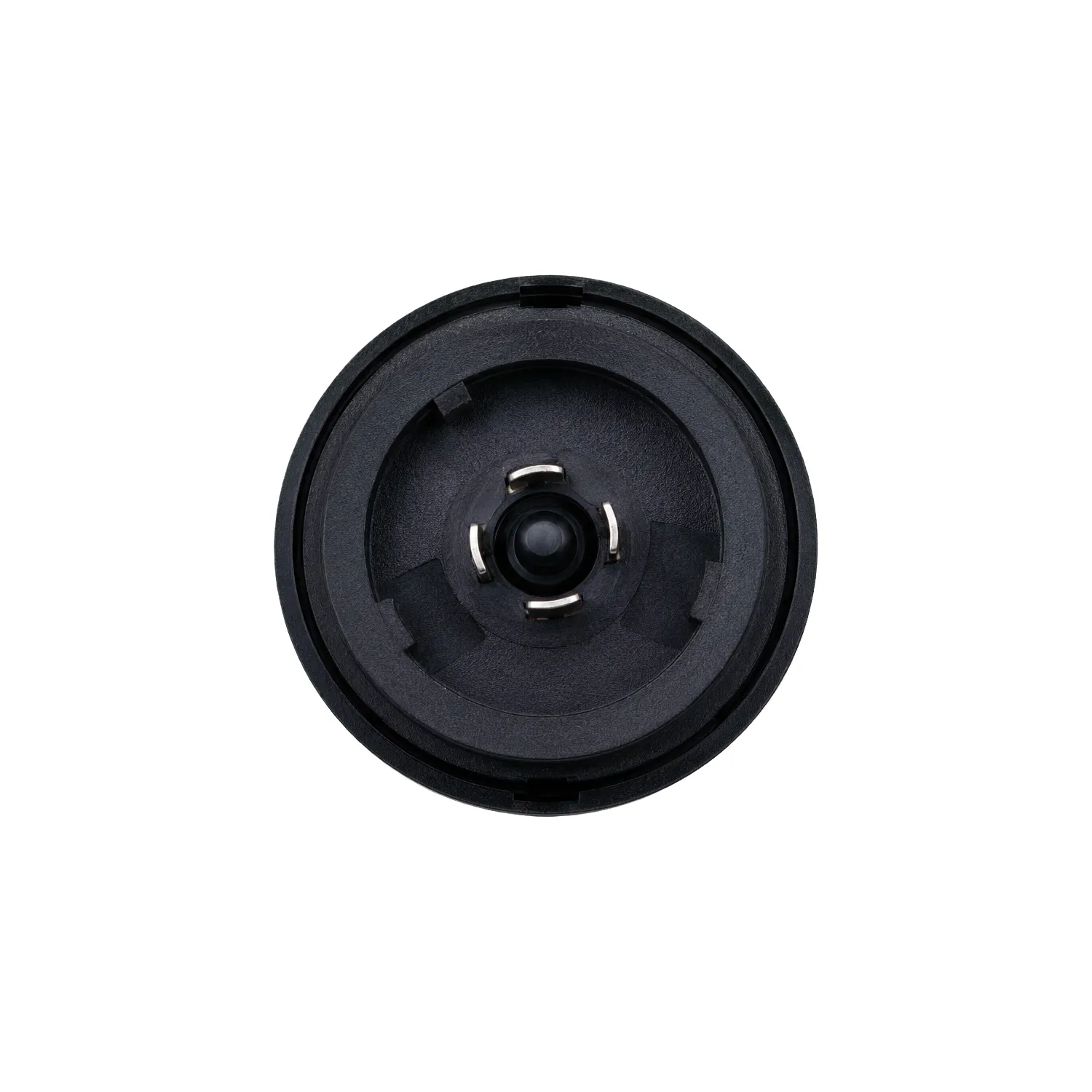

| Mounting Type: | Zhaga Book 18 Connector |
| Operating Temperature Max: | 55 °C |
| Operating Temperature Min: | -25 °C |
| Operating Voltage Range: | 9.5-22.5VDC |
| Packing Height (PU): | 280 mm |
| Packing Length (PU): | 380 mm |
| Packing Weight (PU): | 6000 g |
| Packing Width (PU): | 270 mm |
| Protection Class: | IP65 |
| Protocol: | Bluetooth, DALI-2 |
| Push Button Input: | N/A |
| Qualified Bluetooth System: | Silvair |
| Required DALI Current Max: | 30 mA |
| Storage Temperature Max.: | 60 °C |
| Storage Temperature Min.: | 0 °C |
| Tax: | Standard Rate |
| Type of Detector: | Occupancy (motion) sensing device |
