SR-SV9030B-PIR-D
Bluetooth Mesh to DALI PIR Sensor | DALI Bus Powered | Ceiling Recessed, 9m Range at 3m Height
- Bus-Powered: DALI bus powered, no separate mains connection
- Discreet: Ceiling recessed mounting
- Wide Coverage: 9m detection range at 3m mounting height
- Ceiling recessed office and corridor occupancy control
- DALI bus powered dimming lighting systems
- Bluetooth mesh commissioned lighting systems
Product information "SR-SV9030B-PIR-D"
This DALI powered Bluetooth to DALI sensor controller offers seamless wireless lighting control through a certified Bluetooth® NLC mesh network, ensuring long-range signal transmission across connected devices. Designed for indoor luminaires, it supports autonomous sensor-based operation with adjustable sensitivity to reduce false triggers. The device enables mobile app broadcast control for all DALI line devices and is compatible with kinetic energy and EnOcean switches (EWSSB, EWSDB). Featuring an on-board antenna, magnetic reset function, and IP20 protection, it provides a reliable and flexible solution for modern lighting systems.
| Bluetooth Range Max: | 25 m |
|---|---|
| Bluetooth Range Min: | 20 m |
| Commissioning Methods: | App (Bluetooth) |
| Configuration Interface: | Bluetooth App |
| Conformity Mark: | CE, RED |
| Connector Type: | Wire |
| Current Consumption: | 20 mA |
| DALI Device Type: | DT6 |
| Detection Angle Max: | 360 ° |
| Detection Angle Min: | 360 ° |
| Detection Methods: | PIR |
| Detector Characteristics: | Round |

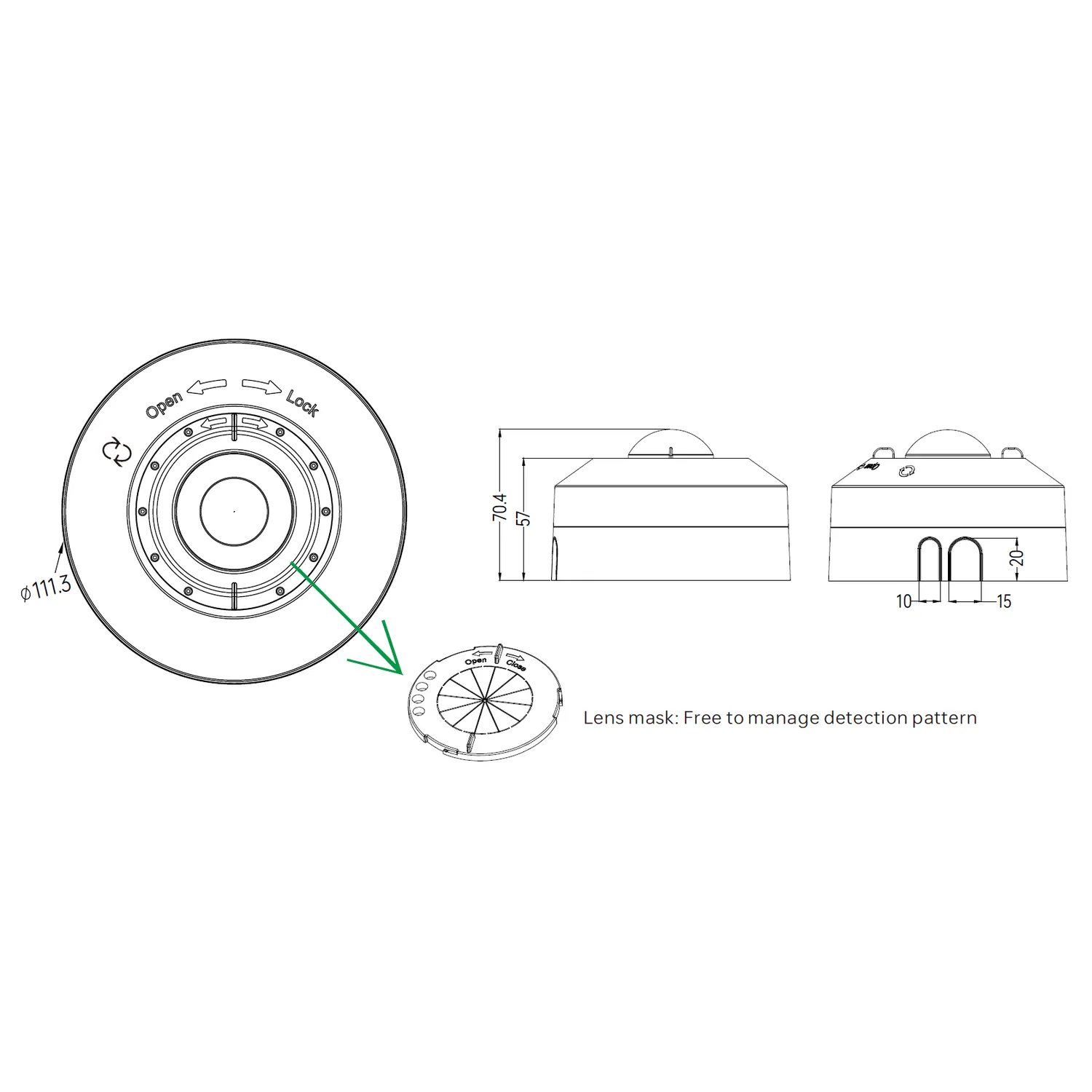

| Diameter: | 111.3 mm |
| Dimming Method: | Digital: DALI |
| Electrical Safety Class: | Class II |
| Height: | 70.4 mm |
| Human Centric Lightning (HCL): | N/A |
| Mounting Height: | Low Bay |
| Mounting Height Max: | 12 m |
| Mounting Height Min: | 2 m |
| Mounting Place: | Ceiling |
| Mounting Type: | Recessed |
| Operating Temperature Max: | 50 °C |
| Operating Temperature Min: | -10 °C |
| Operating Voltage Range: | 9.5-22.5VDC |
| Packing Height (PU): | 280 mm |
| Packing Length (PU): | 380 mm |
| Packing Weight (PU): | 6000 g |
| Packing Width (PU): | 270 mm |
| Protection Class: | IP20 |
| Protocol: | Bluetooth, DALI |
| Push Button Input: | N/A |
| Qualified Bluetooth System: | Silvair |
| Required DALI Current Max: | 20 mA |
| Tax: | Standard Rate |
| Type of Detector: | Occupancy (motion) sensing device |
