SR-DA9030A-MW-BUS
DALI-2 Ceiling Multi-Sensor | Microwave + Light Sensing | DALI Bus Powered, 3m Range at 2.5m Height
- Dual-Sensing: Combined microwave motion and daylight sensing
- DALI-2 Certified: Standardized DALI-2 multi-sensor communication
- Bus-Powered: No separate power supply
- Ceiling mounted daylight harvesting control
- Microwave occupancy detection for open-plan offices
- DALI bus powered multi-sensor lighting systems
Product information "SR-DA9030A-MW-BUS"
The ceiling mount multi-sensor is DALI-2 and D4i certified device which combines motion sensor and light sensor. The device performs motion detection and measures illuminance level. The D4i certified multi-sensor can work with D4i LED drivers or luminaires, the luminaires just need to be connected to mains power. The result is increased occupant comfort and significant energy savings that meet the most demanding building energy codes. The sensor is suitable for high bay applications which need large detection area and sensor based automation. The multi-sensor is D4i certified and can be powered by an AUX 24V power supply in the D4i driver or D4i luminaires, it can also be powered by an external power supply when using with non-D4i DALI drivers.
| Bluetooth Platform: | N/A |
|---|---|
| Casing Temperature Tc Max: | 40 °C |
| Commissioning Methods: | DALI Multimaster Controller |
| Configuration Interface: | DALI adressable |
| Conformity Mark: | CE |
| Connector Type: | Wire |
| Current Consumption: | 2 mA |

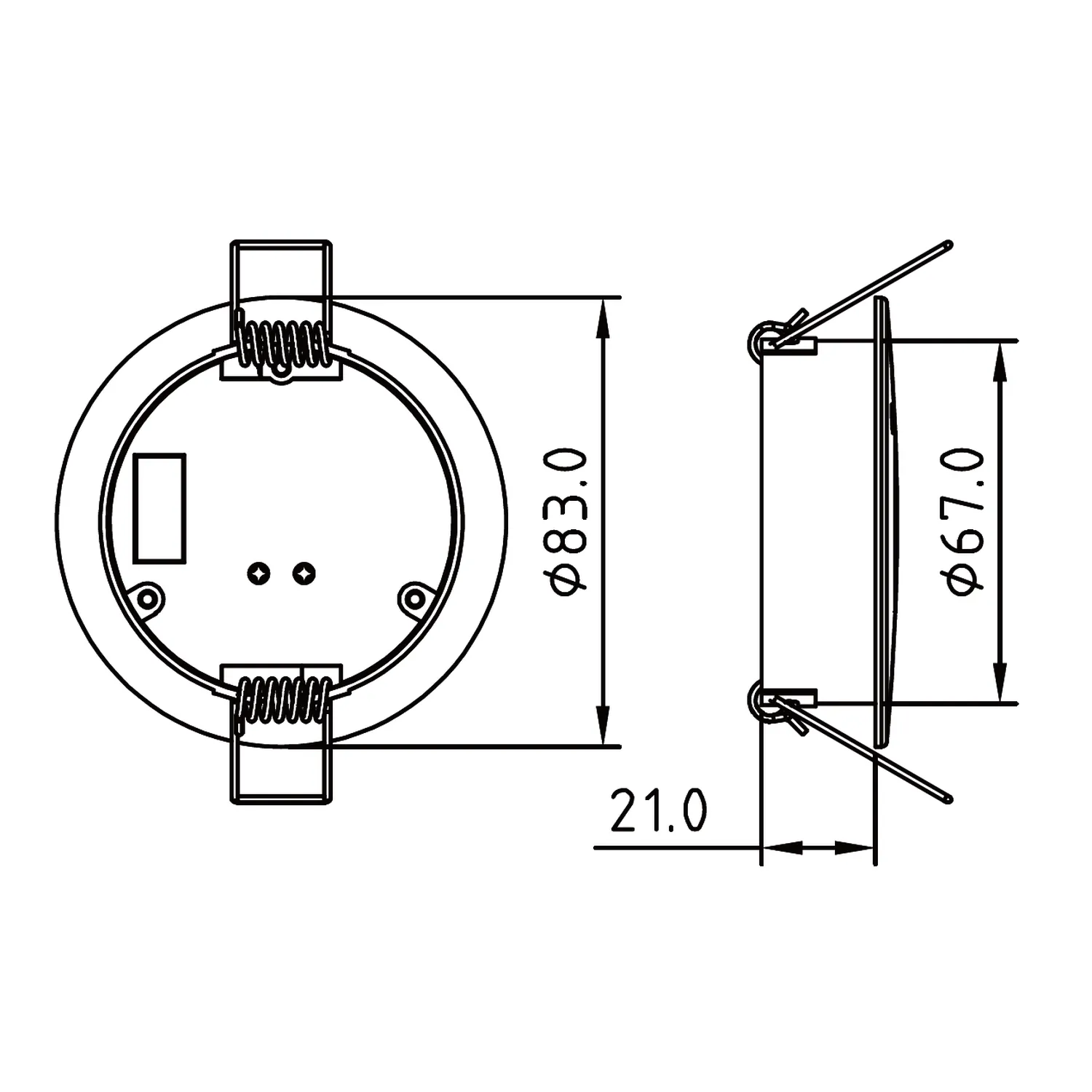

| Cut-Out Diameter: | 73 mm |
| Detection Angle Max: | 360 ° |
| Detection Angle Min: | 360 ° |
| Detection Area: | 4.5 x 4.5 |
| Detection Methods: | Microwave |
| Detector Characteristics: | Round |
| Diameter: | 83 mm |
| Dimming Method: | Digital: acts as input device |
| Electrical Safety Class: | Class II |
| HF Frequency: | 5.8 GHz |
| Height: | 21 mm |
| Human Centric Lightning (HCL): | N/A |
| Mounting Height: | Low Bay |
| Mounting Height Max: | 10 m |
| Mounting Height Min: | 2.5 m |
| Mounting Place: | Ceiling |
| Mounting Type: | Recessed |
| Operating Temperature Min: | 0 °C |
| Operating Voltage Range: | 9.5-22.5VDC |
| Packing Height (PU): | 280 mm |
| Packing Length (PU): | 380 mm |
| Packing Weight (PU): | 6000 g |
| Packing Width (PU): | 270 mm |
| Protocol: | DALI-2 |
| Push Button Input: | N/A |
| Qualified Bluetooth System: | N/A |
| Recessed Required Depth: | 21 mm |
| Required DALI Current Max: | 10 mA |
| Tax: | Standard Rate |
| Type of Detector: | Occupancy (motion) sensing device |
