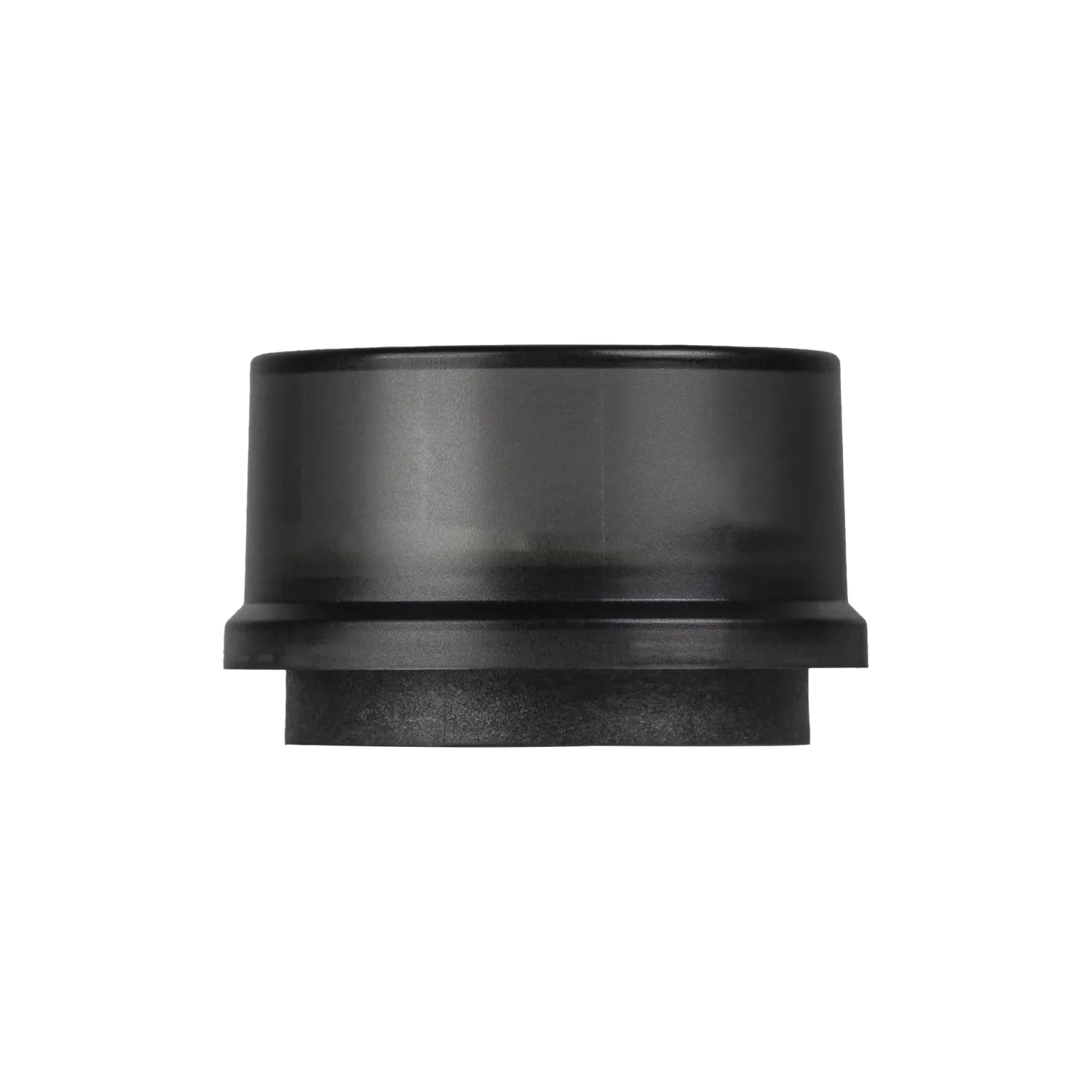

SR-DA9033A-MW
IP65 DALI-2 Multi-Sensor | ZHAGA Interface Socket | 5m Range at 2.5m Height
- Rugged: IP65-rated multi-sensor
- Modular: ZHAGA interface socket for tool-free mounting
- DALI-2 Certified: Standardized DALI-2 multi-sensor communication
- Outdoor and washdown area occupancy sensing
- ZHAGA socket luminaire integration
- DALI-2 multi-sensor street and industrial lighting
Product information "SR-DA9033A-MW"
The IP65 multi-sensor is DALI-2 and D4i certified device which combines motion sensor and light sensor. The device performs motion detection and measures illuminance level. The D4i certified multi-sensor can be easily integrated into D4i LED drivers or luminaires seamlessly, and with standard zhaga interface socket, the sensor can easily fit into various luminaires with no tools required. The sensor-equipped luminaires just need to be connected to mains power. The result. is increased occupant comfort and significant energy savings that meet the most demanding building energy codes. The sensor is IP65 rating, which enables it. to be used for outdoor luminaires. The multi-sensor is D4i certified and can be powered by an AUX 24V power supply in the D4i driver or D4i luminaires, it. can also be powered by an external power supply when using with non-D4i DALI drivers.
| Bluetooth Range Max: | 70 m |
|---|---|
| Commissioning Methods: | App (Bluetooth) |
| Configuration Interface: | Bluetooth App |
| Conformity Mark: | CE, UKCA |
| Connector Type: | Wire |
| DALI Device Type: | DT6 |
| DC Voltage Max: | 24 V |
| Detection Area: | 6x6 |
| Detection Methods: | Microwave |
| Detector Characteristics: | Round |
| Diameter: | 50 mm |
| Dimming Method: | Digital: DALI-2/ D4i |
| Electrical Safety Class: | Class III |
| HF Frequency: | 5.8 GHz |
| HF Operating Frequency (GHz): | 5.8 GHz ±75 MHz ISM band |
| Height: | 35 mm |
| Human Centric Lightning (HCL): | N/A |
| Mounting Height: | High Bay |
| Mounting Height Max: | 10 m |
| Mounting Height Min: | 2.5 m |

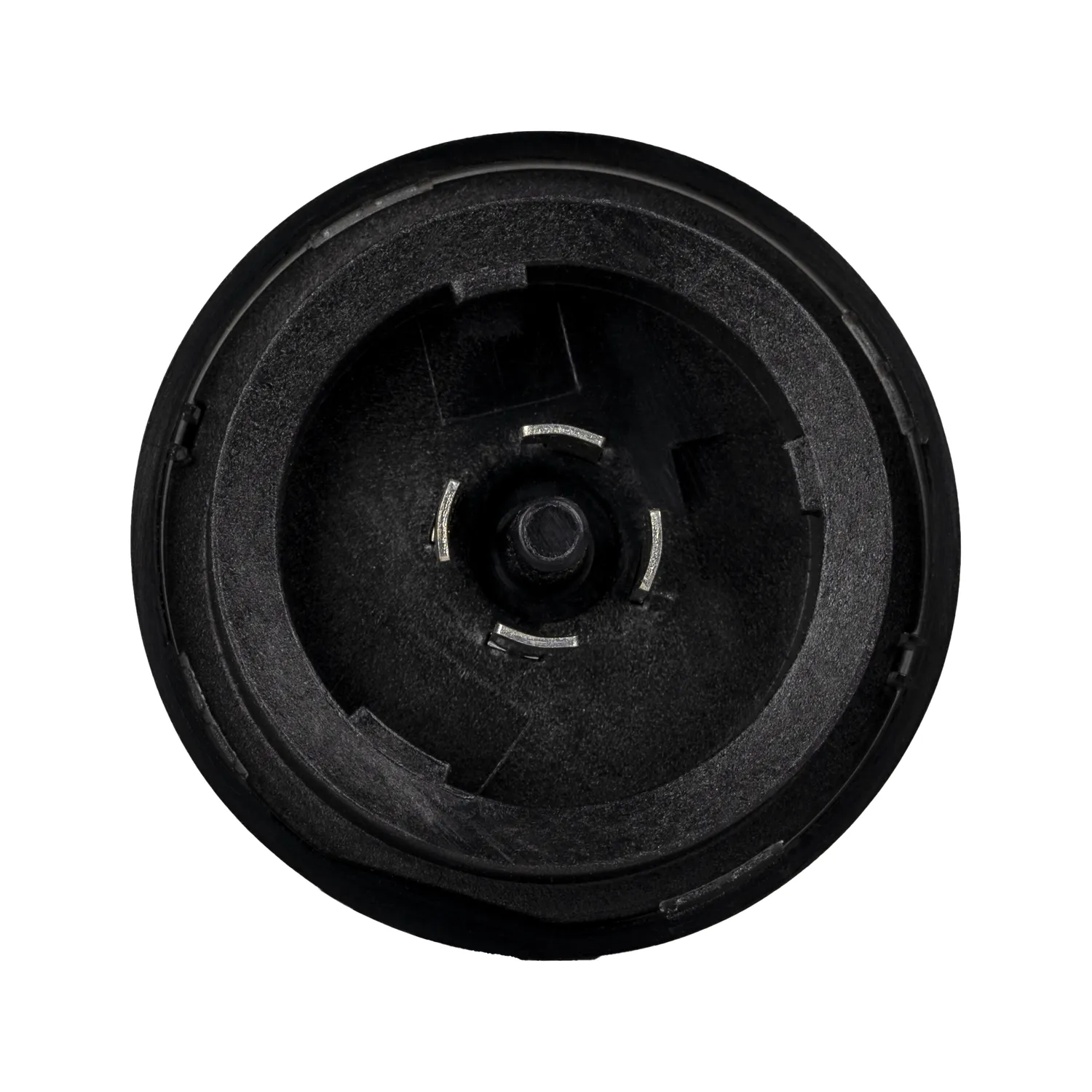

| Mounting Place: | Zhaga Book 18 Luminaire |
| Mounting Type: | Zhaga Book 18 Connector |
| Operating Temperature Max: | 70 °C |
| Operating Temperature Min: | -40 °C |
| Operating Voltage Range: | 12-24VDC |
| Packing Height (PU): | 280 mm |
| Packing Length (PU): | 380 mm |
| Packing Weight (PU): | 6000 g |
| Packing Width (PU): | 270 mm |
| Protection Class: | IP65 |
| Protocol: | Bluetooth, DALI-2 |
| Push Button Input: | N/A |
| Qualified Bluetooth System: | Silvair |
| Required DALI Current Max: | 2 mA |
| Sensitivity: | 0-15 Configurable, 0 is the highest sensitivity |
| Tax: | Standard Rate |
| Type of Detector: | Occupancy (motion) sensing device |
Documents 1
- Datasheet PDF Download
