SR-SBP2801K4-BLE
Bluetooth wireless switch | 2-Gang | 86 x 86mm Wall Panel
- Battery-Powered: No wiring required, easy retrofit installation
- Wireless: Bluetooth mesh push-button control
- Flexible: Freely placeable 86 x 86mm wall panel
- Wall-mounted scene and dimming control
- Bluetooth mesh commissioned retrofit switching
- Meeting room and office lighting control panels
Product information "SR-SBP2801K4-BLE"
SR-SBP2801K4-BLE is a CCT wall remote based on a Bluetooth Mesh network. It is self-powered, requiring no wires or batteries, eliminating replacement and re-installation costs while offering an ultra-long lifetime of over 1 million presses. The device supports easy and quick pairing through an app and operates on 2.4 GHz globally. With mesh networking, receivers can transmit signals to extend control distance, with up to 30 meters between neighboring devices. It features a standard EU size, on-board antenna, IP20 rating, and is compatible with BLE drivers, controllers, signal converters, and sensors, backed by a 5-year warranty.
| Commissioning Methods: | App (Bluetooth) |
|---|---|
| Configuration Interface: | Bluetooth App |
| Conformity Mark: | CE |
| Connector Type: | wireless |
| Dimming Interface: | Bluetooth Mesh (BLE 5.2) |
| Electrical Safety Class: | Class III |

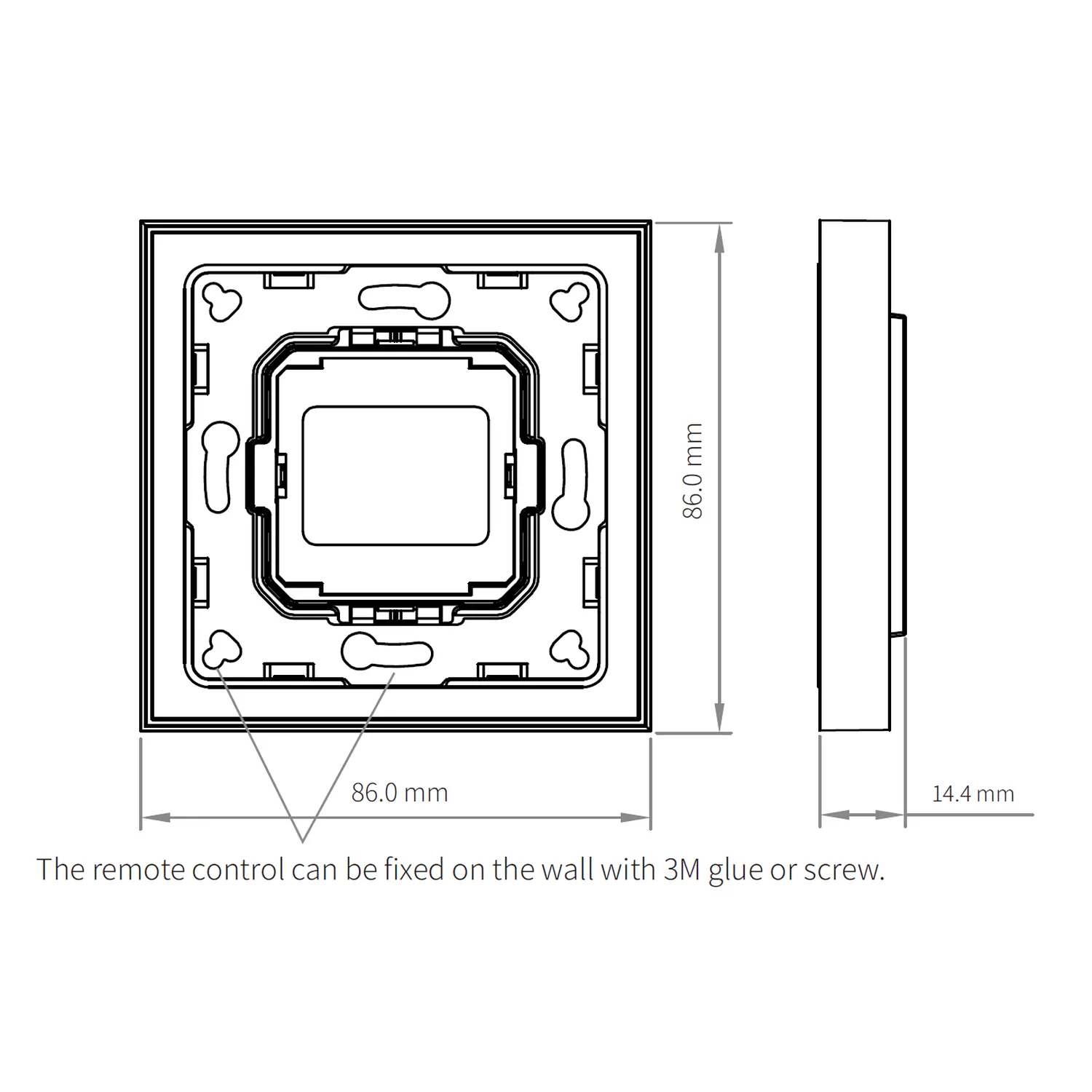

| Height: | 14.4 mm |
| Length: | 86 mm |
| Mounting Place: | Wall |
| Packing Height (PU): | 280 mm |
| Packing Length (PU): | 380 mm |
| Packing Weight (PU): | 6000 g |
| Packing Width (PU): | 270 mm |
| Protection Class: | IP20 |
| Protocol: | Bluetooth |
| Qualified Bluetooth System: | Silvair |
| Tax: | Standard Rate |
| Width: | 86 mm |
Documents 1
- Datasheet PDF Download
